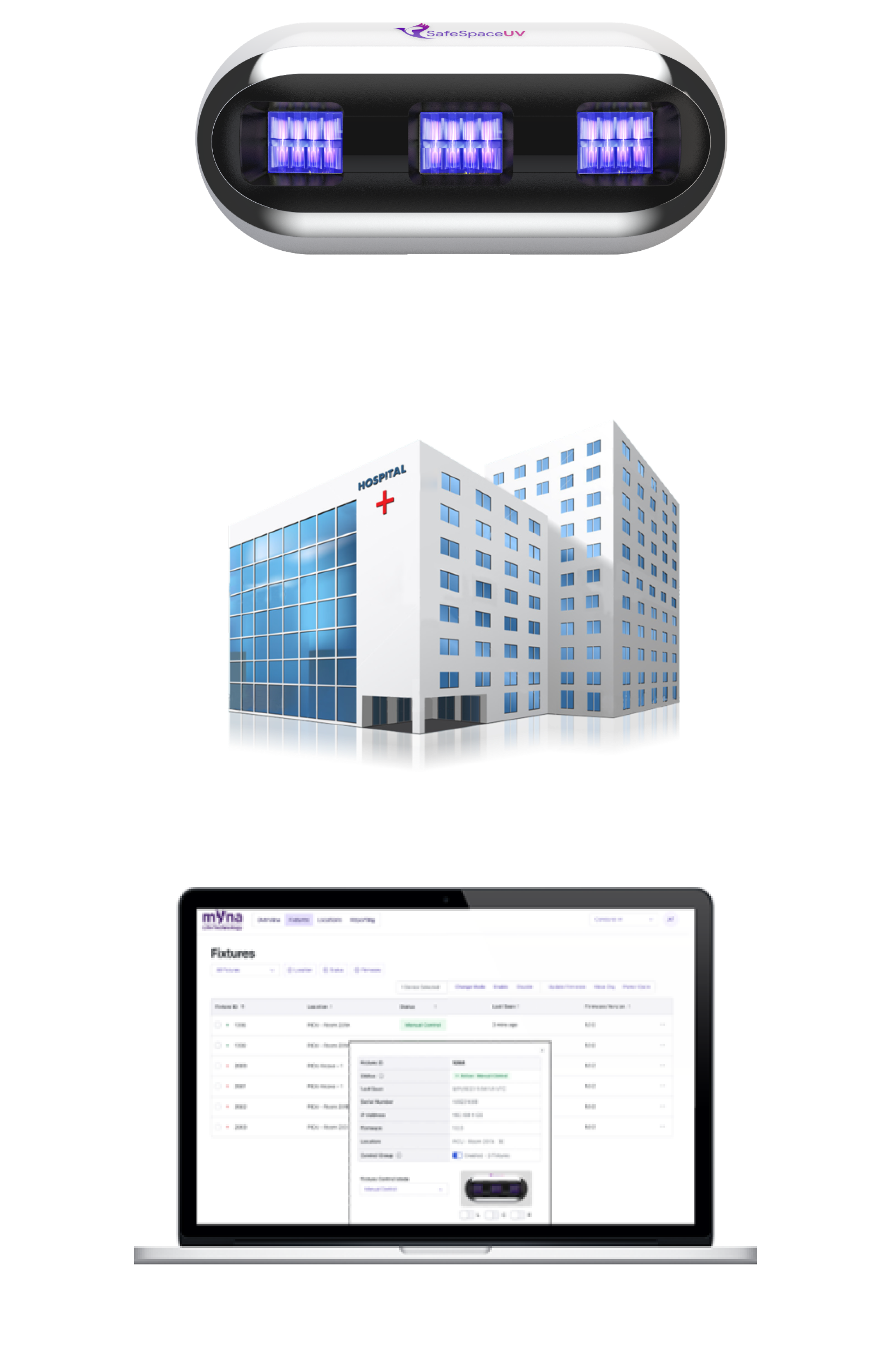

The Mynatek Disinfect Solution

The Mynatek Disinfect solution is a powerful new tool in the fight against the spread of deadly pathogens such as MRSA, C-Diff, Candida Auris, and SARS-COVID-19.

Mynatek D3 Fixtures are distributed throughout a facility and kill pathogens using far-UVC light. They suppress microorganisms on surfaces and in the air - in occupied spaces - automatically and continuously, with people present, without any assistance from cleaning or infection control staff

The Mynatek Cloud provides centralized configuration, monitoring and reporting on all fixtures in a facility, ensuring compliance with policies and protocols and further reducing operational and administrative burdens.
myna product introduction

Key Features and Benefits

Mynatek Cloud

The Mynatek Cloud is a cloud-based application that empowers administrators to seamlessly set up, control and monitor Mynatek Fixtures. With its intuitive interface and robust features, the Mynatek Cloud provides a centralized platform for comprehensive fixture management, ensuring optimal performance and efficiency.

  • Easy Setup - Effortlessly configure and onboard Mynatek Fixtures with a user-friendly interface.
  • Real-time Control: Take command of Fixtures remotely, adjusting settings and monitoring performance in real time
  • Comprehensive Monitoring: Gain valuable insights into fixture health and performance with detailed analytics and reports.

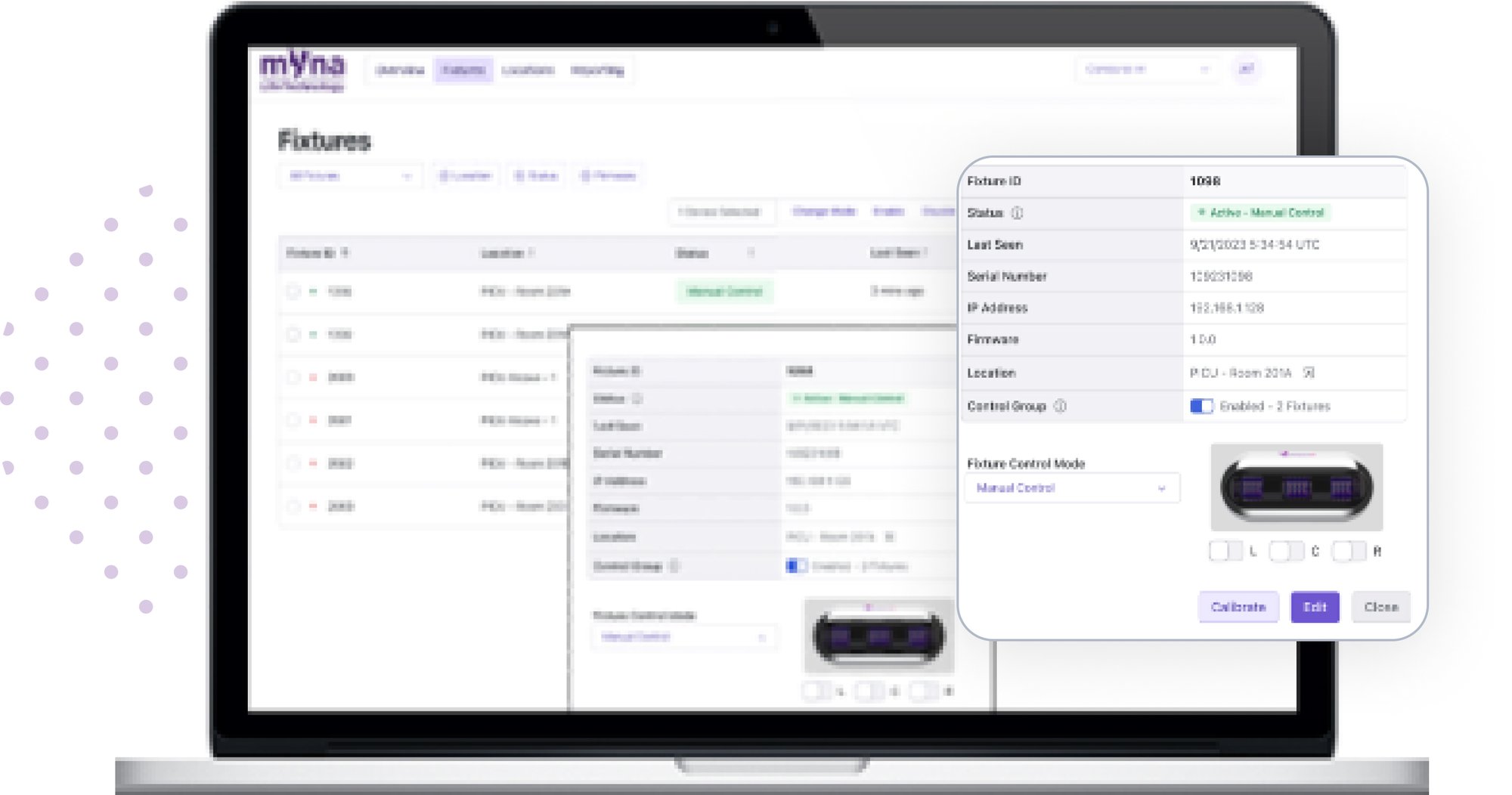

Myna Cloud application screenshot

Mynatek D3 Fixtures

Mynatek D3 Fixtures are intelligent devices that automatically and continuously adjust far-UVC light levels to maximize germicidal efficacy while ensuring the safety of occupants. Facilities can start with a single fixture for a small room and multiple fixtures for larger rooms. Once configured the Myna Fixtures operate completely autonomously without the need for human intervention.

  • Safe and Effective far-UVC - Highly lethal to the most problematic pathogens - including MRSA, C-Diff, Candida Auris and SARS-COVID-19 - without harm to humans.
  • Machine Vision and AI Control - Precise detection of occupant locations to enable maximum disinfection efficacy while guaranteeing compliance with far-UVC exposure limits
  • Safe and Private: Triply-redundant controls ensure that occupants are never exposed to excessive UV levels; Private-by-design with on-device processing, never saved in memory.
product_solution_2

Specifications

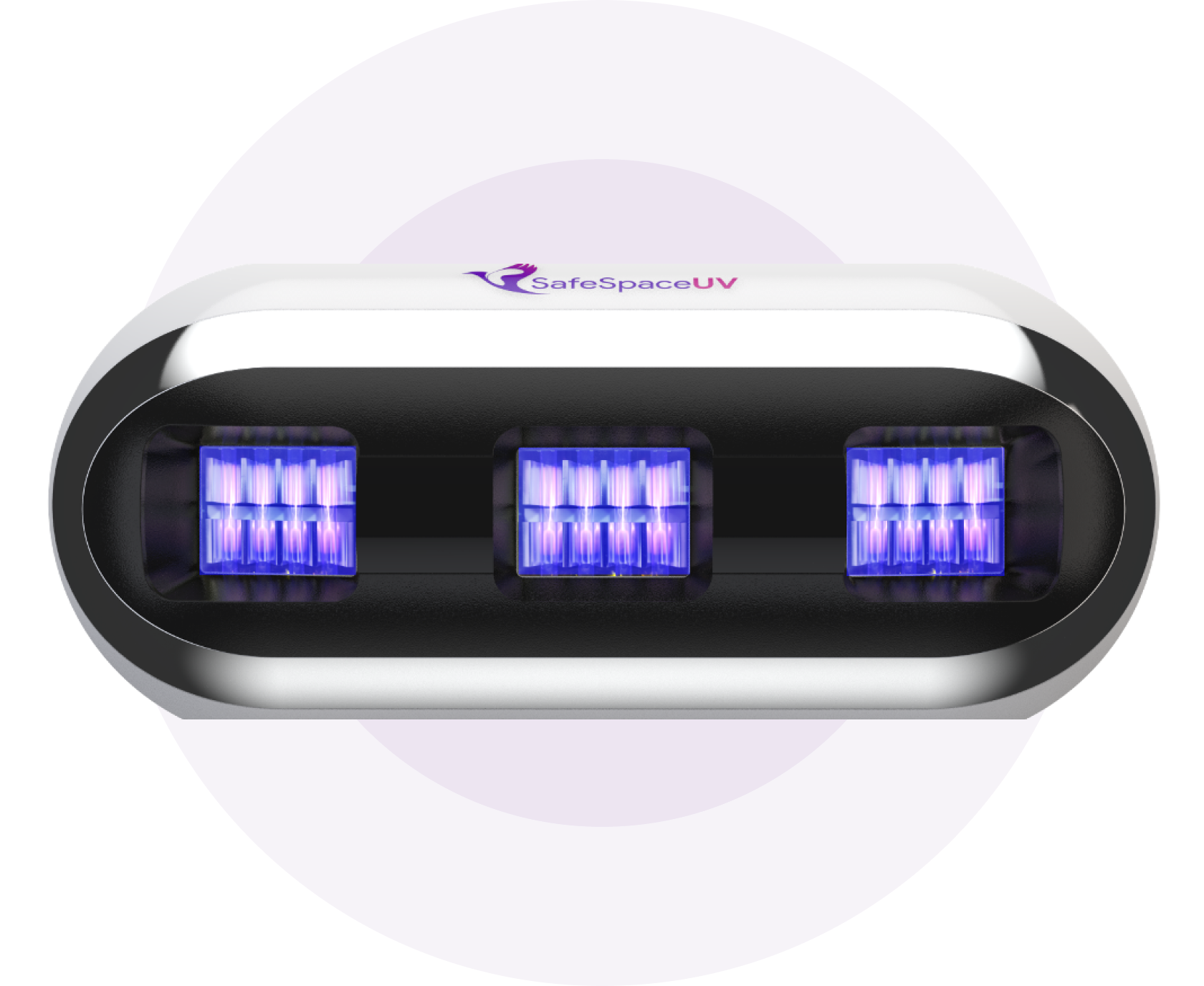

Mynatek D3 Fixture

Smart devices containing the far-UVC lamps that are mounted on walls or ceilings in the spaces to be disinfected.

  • UV OUTPUT: 3 Filtered UV lamps, 222 nm
  • LAMP LIFE: >10,000 hours
  • DIMENSIONS: 330 x 165 x 127 mm
  • WEIGHT: 3.7 kg
  • MOUNTING: VESA 75 x 75 mm
  • OPERATING MODES: Manual; AI Control; Occupancy Mode (auto shut-off if a person is detected).
  • AI CONTROL: Real-time detection of people and distance; Continuous, automatic adjustment of light level to below threshold limit value (TLV) set by ACGIH for human eyes (161 mj/cm2)
  • FAIL-SAFE: Immediate shut-off if any person is detected within 1 meter of the fixture (active in all operating modes).
  • POWER: 110/220 VAC, 200 Watts
  • AMBIENT TEMP: 0-40 degrees C

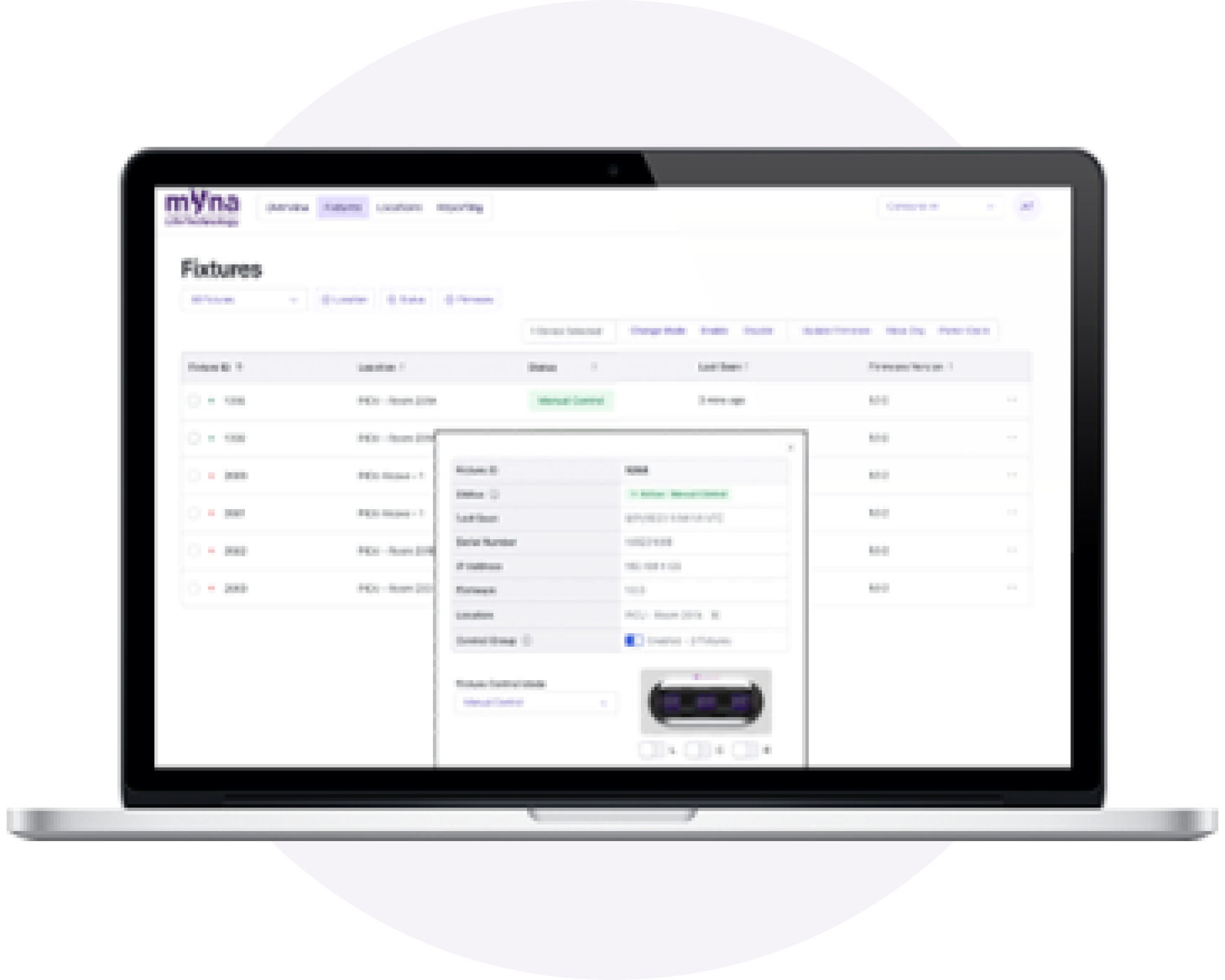

Mynatek Cloud

A cloud-based application that enables administrators to setup, control, and monitor Myna Fixtures.

  • Cloud hosted application for easy management Myna Fixtures
  • Secure, encryted connection with Myna Fixtures
  • Easily provision new Myna Fixtures for deployment
  • Enable AI-powered Myna Fixture control modes
  • Detailed audit logs and command history for easy reporting and analysis
  • View Myns Fixtures by location and status
  • Works with Google Chrome Browser
